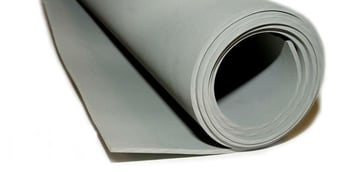

Grey Rubber Electrical Safety Mat - Max Working Voltage 17,000V IEC61111 Class 2 - Per 1 x 1 Metre - [BD-642102]

GTIN: 5060722854744

Brand: Boddingtons Electrical

Key Features

Colour Grey

Grey Rubber Electrical Safety Mat - Max Working Voltage 17,000V IEC61111 Class 2 - Per 1 x 1 Metre - [BD-642102]

CODEBD-642102

ce info All our CE products are now UKCA compliant

Loading stock levels...

£65.50 (Exc VAT)
£78.60 (Inc VAT)

Please Choose Your Option BD-1642102B:
loading options
Quantity
Flame Acid and Oil Resistant - 3mm Fine Ribbed Pattern - IEC61111 Class 2/17 kV - Sold Per Meter - Max Roll Size 10 Metres

Buy Now options

Please check stock availability above:

  • Fast Delivery - Usually delivered next working day. (12 noon Daily Cut-Off)
    Loading dates...

  • Standard Delivery - Usually delivered within 2 to 4 working days.
    Loading dates...

  • Best Price Delivery - Usually delivered within 5 to 10 working days.
    Loading dates...

  • Highlands and Island & Northern Ireland Delivery - Usually delivered within 2 to 4 working days.
    Loading dates...

delivery options Delivery Costs

Sorry currently no documents, call for more info.

Grey Rubber Electrical Safety Mat - Max Working Voltage 17,000V IEC61111 Class 2 - Per 1 x 1 Metre - [BD-642102]

Sold as 1 Metre Long by 1 Metre Wide

Grey, rubber based electrical switchboard matting produced in 10metre lengths also available in metre lengths if required with a continuous 3mm fine ribbed pattern.

Tested 20,000V with maximum working voltage 17,000V Class 2/17 kV 1000x3mmx10m

Material Properties:

Rubber:
  • Tensile Strength: 6Mpa IEC61111
  • Hardness: 65 Shore A IEC61111
  • Elongation: not less than 400% IEC61111
  • Mechanical Puncture Resistance not less than 70N IEC61111
Product:
  • Proof Test: 1kV/s, 3min 20kV A.C. No breakdown
  • Withstand Test: 1kV/s, 1 min, 30kV A.C. No breakdown
  • Ageing Test: 168 h. 70°C Not less than 63N
  • Flame Retardance test: Flame does not reach any point on a 50mm radius circle
  • Thermal Test: -25°C, 100N, 30s, 20kV A.C. 3min No cracking, no breakdown
  • Acid Resistance: 8h, H2S04 32°Baumé, 30kV A.C No breakdown, not less than 65N
  • Oil Resistance: 70°C, 24h. in oil, 30kV A.C. No breakdown, not less than 60N
  • Weight per m² is 3.4Kg
